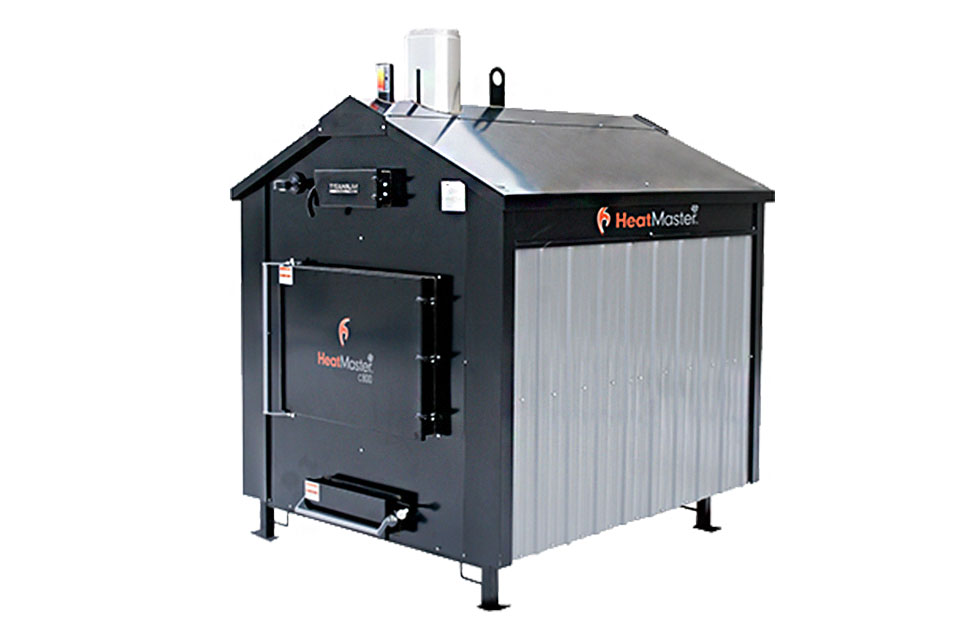

HeatMaster C800

How can we help?

Let’s get in touch!!

The largest unit we make is ready for anything. Four sets of feeds on the back make it a natural to heat multiple structures with ease.


Technical Information

Approx. Heating Space 20,000 sq. ft.
Max. BTU's 800,000 BTU/hr
Water Capacity 555 gallons
Firebox Dimensions(L" x W" x H") 52" x 60" x 52"
Firebox Door 42" x 30"
Weight 4000 lbs
Outlets 4 set of 1-1/2" feeds & returns
Chimney Size 10"
Overall Dimensions(L" x W" x H") 98" x 82" x 100"
Easy View Water Level Gauge
Deep Oval Firebox
Forced Air Draft
Triple Pass Exhaust
Dump Feature
Heavy Duty Shaker Grates
Easy Clean Ash Pan
