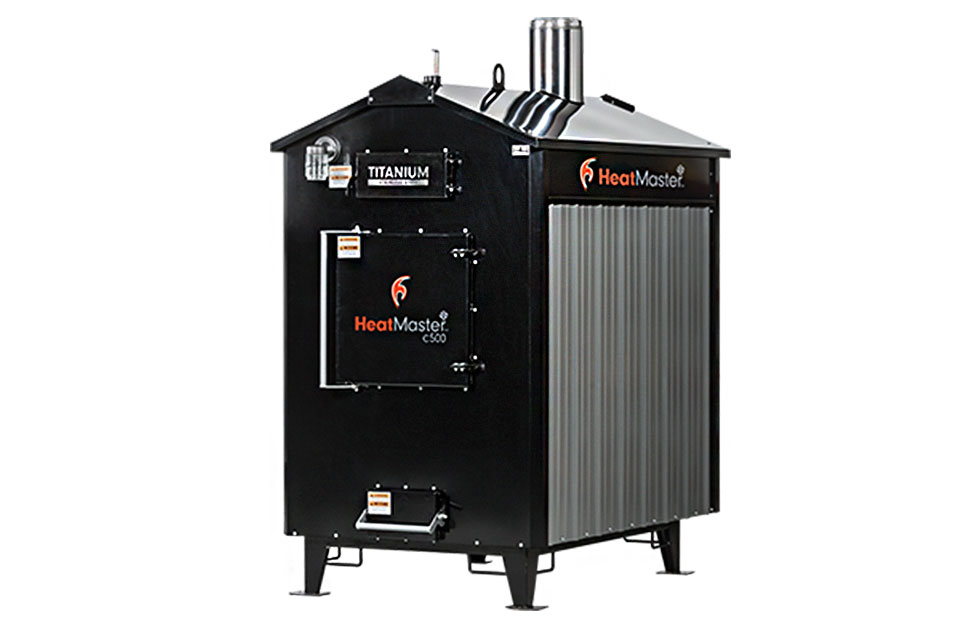

HeatMaster C500

How can we help?

Let’s get in touch!!

The large capacity of the C500 makes it ideal for heavy duty heating. Make the most of your coal supply with this powerful unit.


Technical Information

Approx. Heating Space 10,000 sq. ft.
Max. BTU's 500,000 BTU/hr
Water Capacity 230 gallons
Firebox Dimensions(L" x W" x H") 34" x 56" x 42"
Firebox Door 24" x 24"
Weight 2000 lbs
Outlets 2 set of 1-1/2" feeds & returns
Chimney Size 8"
Overall Dimensions(L" x W" x H") 81" x 51" x 93"
Easy View Water Level Gauge
Deep Oval Firebox
Forced Air Draft
Triple Pass Exhaust
Dump Feature
Heavy Duty Shaker Grates
Easy Clean Ash Pan
